Jib crane

Jib crane

Ideal solution for moving loads in a
circular area next to the work position.

Do you need a jib crane for an industrial manufacturing or port application? Then consider a jib crane from GH Cranes & Components, one of the 5 largest crane manufacturer in the world.

Jib cranes from GH Cranes & Components come in four styles: wall jib cranes, column jib cranes, industrial jib cranes and port jib cranes.

Our jib cranes are the ideal solution when you must move loads in a circular direction next to a manufacturing station. They feature an integrated lifting mechanism, typically a chain or wire rope hoist that is either manual or motorized.

Jib Cranes from 125 kg to 20 ton.


Standardized Construction

Standardized Construction

Versatile modular design

Adaptable to multiple applications

Highly reliable components

Robot Welded

Robot Welded

Maximum strength

Highest quality

Uniform welds

Versatile Capacity

Versatile Capacity

Chain hoists from 500 kg.

Wire rope hoists up to 100 tons



WALL-MOUNTED JIB CRANE

The wall-mounted jib cranel is available in 5 models of different sizes for the manual rotation version and 3 models for the electric rotation version.

With chain hoist and optional cable with capacities ranging from 250 kg up to 2 t.

In standard versions up to 1 t capacity and 7 m boom or 2 t capacity and 5 m boom. With manual or electric rotation drive.

WALL-MOUNTED JIB CRANE

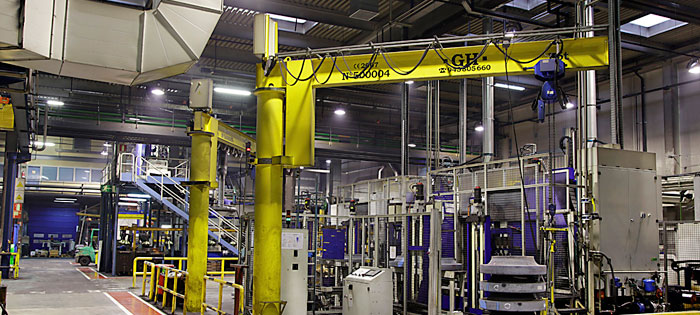

COLUMN JIB CRANE

The column jib crane is designed for the handling of light and medium weight parts in production processes which require the independence of the manufacturing stations with respect to the main cranes of the factory building.

In the standard version the capacity ranges from 125 kg up to 4 t. We have 5 standard models depending on the load and the boom and 5 special models depending on the height of the column. Rotation using an electrical system and cable hoists with a variable-frequency drive in lifting and movement of the trolley, as well as in the rotation, allowing smooth and precise movements.

COLUMN JIB CRANE

INDUSTRIAL JIB CRANE

The industrial jib crane is designed for the handling of heavy loads in production processes which require the independence of the manufacturing stations with respect to the main cranes of the factory building.

Up to 12.5 t capacity and with a boom of 7 m or 20 t capacity and boom of 5 m in the standard version and 4 models from 2.5 t up to 20 t. Rotation by means of an electrical system.

INDUSTRIAL JIB CRANE

PORT JIB CRANE

Also known as marine jib cranes. These cranes are specially designed for handling heavy loads in marine environments.

Up to 12.5 t capacity and boom of 7 m or 20 t capacity and 5 m boom in the standard version and 4 models of different sizes. Rotation by means of electrical system and cable hoist with option of variable frequency drive for lifting. Movement and rotation with variable frequency drive as standard.

With special paint, stainless steel cabinet, radio control and fixed push-button control and options such as the spreader and the slings for hoisting boats.

PORT JIB CRANE
